DOSATRON provides high quality equipment's for the treatment of fluids, service excellence, a high level of expertise and customer proximity worldwide.

This is reliable and sustainable solutions to help people to meet challenges of today and tomorrow.

DOSATRON provide solution for liquid to liquid precision dosing and mixing issues.

The DOSATRON Water Line powered dosing pump is a simple and ingenious system that has demonstrated its worth since many decades in about a hundred countries.

Installed directly in the water supply line, the DOSATRON operates without electricity; it uses the flow of water as the power source. The water activates the DOSATRON, which takes up the required percentage of concentrate and injects it into the water. Inside the DOSATRON, the concentrate is mixed with the water, and the water pressure forces the solution downstream. Once adjusted, the dispenser requires no action or external control. The high dosing precision eliminates all risks of overdosing, thus contributing to respecting the environment

The production of drinking water for small communities , for rural areas or for water supply in emergency situations requires reliable equipment adapted to sometimes extreme conditions. These facilities must meet current health standards and ensure continuity of service to the population.

Installed directly on the water supply line, the DOSATRON dosing pump works with the water in your network as the only source of energy. •The pressure and flow of water drives the engine piston, which is itself connected to a metering piston. •Chlorine or other disinfection chemicals are proportionally dosed and continuously injected with water at the chosen dosage.

The dose of concentrated product is directly proportional to the volume of water flowing through the DOSATRON, regardless of variations in the flow rate and pressure of the water supply to the network.

Self-priming up to 4 metres, DOSATRON pumps are suitable for degassing products, they guarantee the homogeneity of the dilution. They allow direct reading and easy adjustment of the dosage value. This historical concept developed in 1974 is now available for the first time with the ACS and NSF sanitary conformity certification for certain products in the Water Line.

Finally, this technology is easy to implement and ensures low operating and maintenance costs.

Here after some case study:

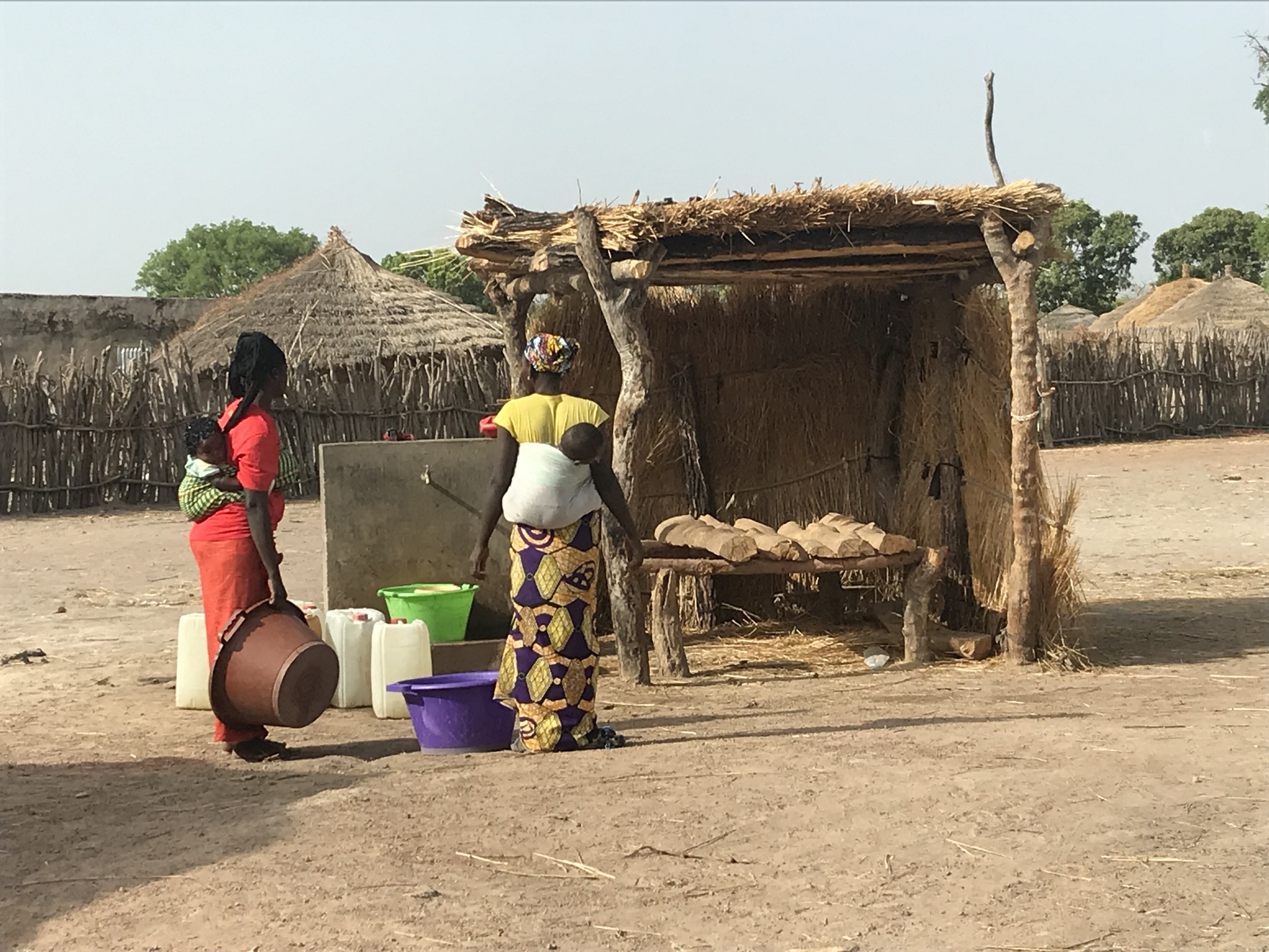

Bornes fontaines.jpg
¤ Dosatron's partner, was awarded the contract to design and supply equipment for the construction of 38 AEPs to be delivered on a turnkey basis to the Senegalese authorities. The population of the region can now consume water in compliance with WHO standards.
Dosatron D8WL3000 N IE.jpg
¤ The chosen solution allows carbonation and chlorination thanks to the gravitational arrangement of the sources [1]
